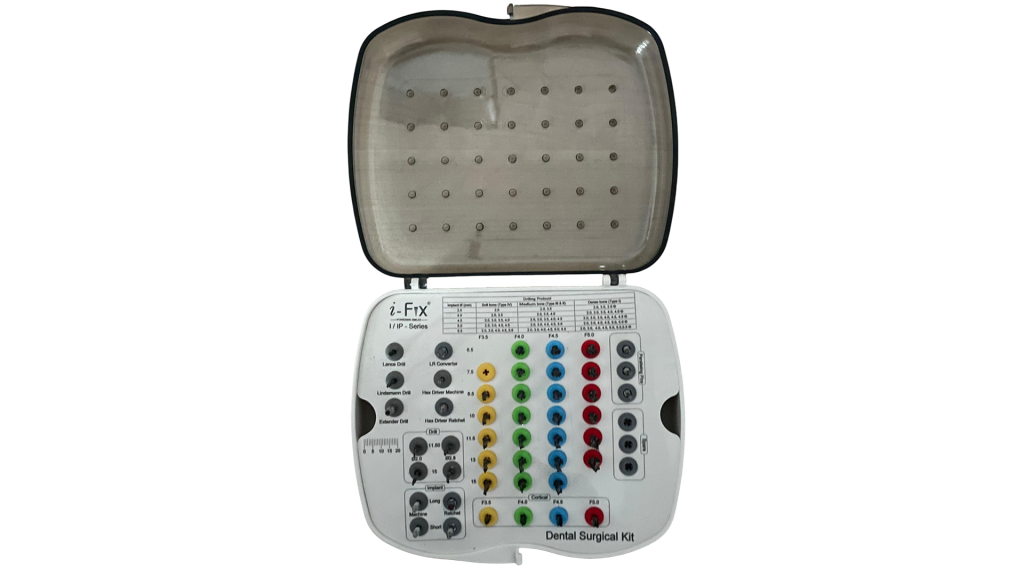

Surgical Kit
Prefabricated Abutments

Features

The coronal region of the i-Fix PRO 4/ 4.5 & 5 mm diameter implants is back tapered, a design that allows for maximum bone volume around the implant platform.

Double lead threads the expanding taper with double lead thread design of i-Fix PRO offers high initial stability, a gradual bone condensing property, and adjustable implant orientation for optimal prosthetic connection angulation. In detail, the 1.3 mm spacing of the double start threads advances the implant 2.6 mm with each rotation.

Implant body design the expanding tapered body is designed to attain high stability even in compromised bone situations.

Reverse-cutting flutes running along i-Fix Pro are two reverse-cutting flutes (length of flutes depends on implant length). Insertion of the implant counter clock wise engages the cutting capability of these flutes, thereby gradually widening the osteotomy and allowing for continued insertion.

Apical drilling blades facilitate insertion into minimally prepared sites design the apical region of i-Fix pro features twin cutting blades that
