Features
Characteristics
Surgical Kit

Graft less Treatment Solution

Avoid complex bone-grafting procedures with i-Fix Zygon Implants, which anchor in the Zygomatic bone.

Greater Surgical and Prosthetic Flexibility

Benefit from the new implant body design with lengths ranging from 30 mm to 62.5 mm and 55O angulation, all with an external hex connection.

High Primary Stability for Immediate Function

Provide patients with a fixed provisional prosthesis immediately after surgery. Multicortical anchorage and the proven apex design allow for high primary stability.

Ti Grade V ELI Characteristics

The i-Fix Zygon Implant system components are made of the Biocompatible medical grade “Grade V ELI/Grade 23 Titanium Alloy”. The specific Titanium alloy used by Kamal Encon was chosen due to its superior properties including high strength to weight ratio, very high corrosion resistance, high modulus of elasticity and its excellent osseointegration capabilities.

Properties		Advantages
Tensile Strength	860 Mpa Minimum	Extremely high strength/ weight ration
Elongation	10%	Improved ductility and fracture toughness under static and dynamic loads
Oxygen content	0.13% Maximum
Biocompatibility	Excellent	Direct structural and functional connection between bone and implant surface.

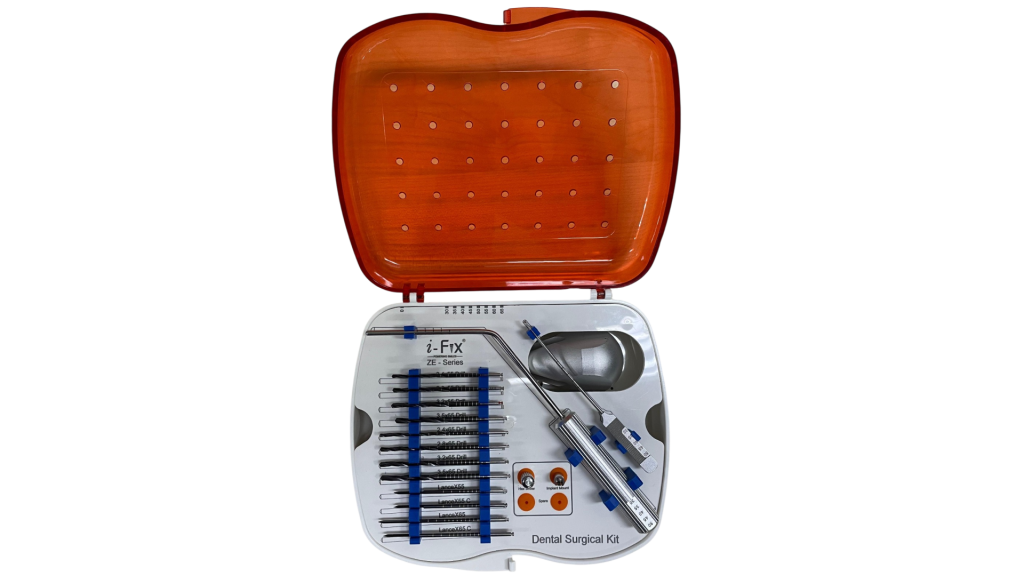

i-Fix Zygon Implant Surgical Kit

Description	Article Code	Tools
Zygon Lance Drill Coated 55mm	IZLD55
Zygon Lance Drill Coated 65mm	IZLD65
Zygon Lance Drill Carbide 55mm	IZLDC55
Zygon Lance Drill Carbide 65mm	IZLDC55
Zygon Twist Drill 2.4x 55mm	IZTD2455
Zygon Twist Drill 2.8x 55mm	IZTD2855
Zygon Twist Drill 3.2x 55mm	IZTD3255
Zygon Twist Drill 2.4x 65mm	IZTD2465
Zygon Twist Drill 2.8x 65mm	IZTD2865
Zygon Twist Drill 3.2x 55mm	IZTD3265
Zygon Depth Gauge Straight	IZDGS
Zygon Depth Gauge Angled	IZDGA
Zygon Handle	IZYHD
Zygon Connection to Hand Piece	IZCHP
